Products » KTM » 530 XC-W (R)
Model Quick Search

$8,998.00
$7,600.00
$1,398.00

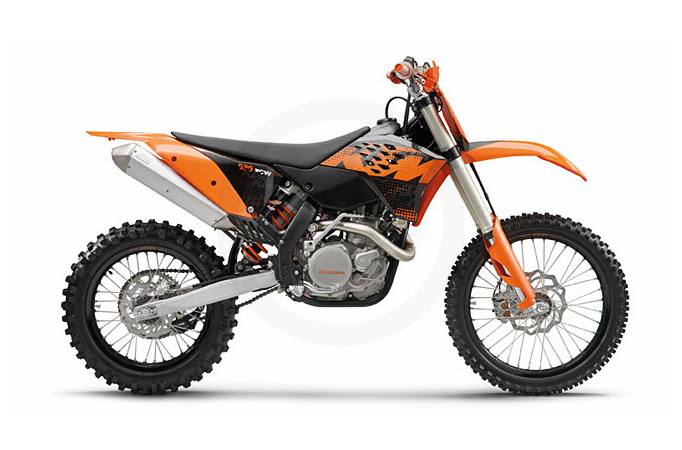

2009 KTM 530 XC-W (R)

2009 530 XC-W Sale

Now until September 15, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine type: Single cylinder, 4-stroke, SOHC, 4 valves
    • Displacement: 510.35 cc
    • Bore x stroke: 95/72 mm (3.74/2.83")
    • Compression ratio: 11.9:1
    • Starter/Battery: Kickstarter/E-Starter / 4 Ah
    • Transmission: 6 gears wide-ratio
    • Carburetor: Keihin MX FCR 39
    • Control: 4 V / OHC with roller rocker levers
    • Lubrication: Pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 33:76
    • Final drive: 14:50
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital 4K-3B
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium7020, removable
    • Handlebar: Neken Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front/rear: 300/335 mm (11.81/13.19")
    • Front brake: 260mm (10.24") disc, Brembo double piston
    • Rear brake: 220mm (8.66") disc, Brembo single piston
    • Rims, front/rear: 1.60 x 21"; 2.15 x 18"
    • Tires, front/rear: 80/90-21"; 110/100-18"
    • Chain: X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminium w/USFS spark arrestor
    • Steering head angle: 63.5°
    • Trail: Adjustable
    • Wheel base: 1475±10 mm (58.07±0.39")
    • Ground clearance (unloaded): 380 mm (15")
    • Seat height: 985 mm (38.78")
    • Tank capacity: approx. 9.2 liters (2.43 gal)
    • Weight (no fuel): approx. 112.2 kg (247.36 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
    Displacement 510.35 cc
    Bore and Stroke 95 x 72 mm (3.74 x 2.83 in.)
    Cooling Liquid cooled
    Compression Ratio 11.9:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3B
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/90-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 110/100-18 in.
    Dimensions
    Dry Weight 247.36 lbs (112.2 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Transmission
    Transmission 6 gears wide-ratio
    Final Drive 14:50

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 530 XC-W (R)
    Style Off-Road
    MSRP* $8,998.00
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/90-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 110/100-18 in.
    Dimensions
    Dry Weight 247.36 lbs (112.2 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
    Displacement 510.35 cc
    Bore and Stroke 95 x 72 mm (3.74 x 2.83 in.)
    Cooling Liquid cooled
    Compression Ratio 11.9:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3B
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears wide-ratio
    Final Drive 14:50

    Current Promotions

    There are currently no promotions available for this product.
