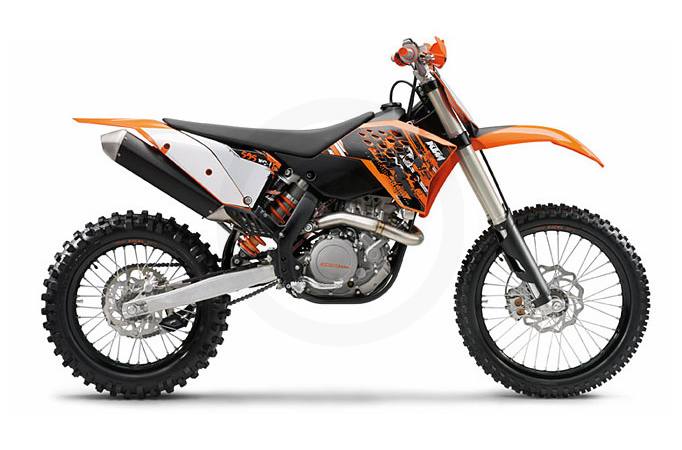

2009 KTM 505 XC-F

2009 505 XC-F Sale

Now until September 15, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

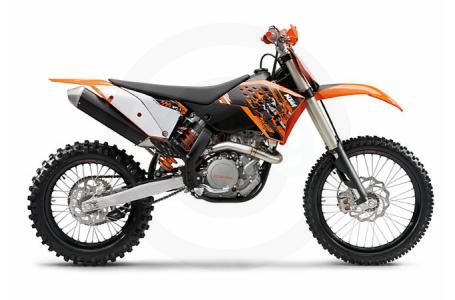

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Decisive turning points.


The maximum is an understatement! With the 505 XC-F, KTM has developed a high-tech racing bike that appeals to riders who are constantly in search of the ultimate. Here, the “Ready to Race” concept clearly turns into “Ready to Win”. Due to its incredible torque, merciless propulsion and unsurpassed performance, it plainly shows who’s the boss in the MX3 class.

    Engine
    • Engine type: Single cylinder, 4-stroke, SOHC, 4 valves
    • Displacement: 477.52 cc
    • Bore x stroke: 100 x 60.8 mm (3.94 x 2.39")
    • Compression ratio: 12.5:1
    • Starter: E-Starter / 4 Ah
    • Transmission: 5 gears XC semi-close-ratio
    • Carburetor: Keihin MX FCR 39
    • Control: 4 V / DOHC with cam levers
    • Lubrication: Pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 29:74
    • Final drive: 14:52
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital SX
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium, removable
    • Handlebar: Renthal Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front/rear: 300/335 mm (11.81/13.19")
    • Front brake: 260 mm (10.24") disc, Brembo double piston
    • Rear brake: 220 mm (8.66") disc, Brembo single piston
    • Rims, front/rear: 1.60 x 21"; 2.15 x 18" Excel
    • Tires, front/rear: 80/100-21"; 110/100-18"
    • Chain: 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63.5°
    • Trail: Adjustable
    • Wheel base: 1475±10 mm (58.07±0.39")
    • Ground clearance (unloaded): 380 mm (15")
    • Seat height: 985 mm (38.78")
    • Tank capacity: approx. 9 liters (2.38 gal)
    • Weight (no fuel): approx. 108.3 kg (238.76 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
    Displacement 477.52 cc
    Bore and Stroke 100 x 60.8 mm (3.94 x 2.39 in.)
    Cooling Liquid cooled
    Compression Ratio 12.5:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital SX
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/100-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 110/100-18 in.
    Dimensions
    Dry Weight 238.76 lbs (108.3 kg)
    Fuel Capacity 2.38 gal (9 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Transmission
    Transmission 5 gears XC semi-close-ratio
    Final Drive 14:52

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 505 XC-F
    Style Off-Road
    MSRP* $8,998.00
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/100-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 110/100-18 in.
    Dimensions
    Dry Weight 238.76 lbs (108.3 kg)
    Fuel Capacity 2.38 gal (9 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
    Displacement 477.52 cc
    Bore and Stroke 100 x 60.8 mm (3.94 x 2.39 in.)
    Cooling Liquid cooled
    Compression Ratio 12.5:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital SX
    General
    Colors
    Warranty
    Transmission
    Transmission 5 gears XC semi-close-ratio
    Final Drive 14:52

    Current Promotions

    There are currently no promotions available for this product.
