$2,000.00

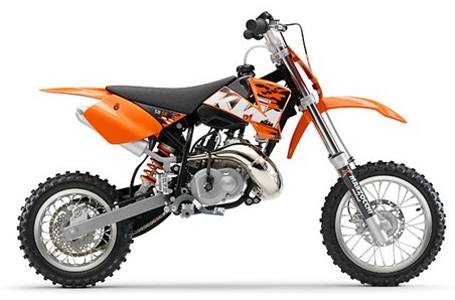

2008 KTM 50 SX

50 SX Sale

Now until September 15, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Only the best power, performance and appearance are good enough for first place: the KTM 50 SX – a winner for every ace from the ages of six to nine. The seat height is adjustable from 650 mm upwards, with long suspension travel, disk brakes at the front and rear, a chain guard, as well as the best power output available in this class.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Transmission: Single gear automatic
    • Carburetor: Dell'Orto PHBG 19 BS
    • Engine lubrication: Mixture lubrication 1:60
    • Transmission lubrication: ATF
    • Primary drive: 16:57
    • Final drive: 10:44
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra analogue
    Chassis
    • Frame: Double grinded central double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi Ø 32 mm (1.26")
    • Rear suspension: WP monoshock
    • Suspension travel: front / rear 185 / 185 mm (7.28" / 7.28")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Disc brake Ø 140 mm (5.51")
    • Rims, front / rear: 1.6 x 12"; 1.6 x 10" Aluminium
    • Tires, front / rear: 2.50 x 12"; 2.75 x 10"
    • Chain: 1/2 x 3/16"
    • Main silencer: Aluminium
    • Steering head angle: 66°
    • Wheel base: 1030 mm (40.55")
    • Ground clearance (unloaded): 255 mm (10.04")
    • Seat height 650 / 675 mm (adjustable): (25.59 / 26.57")
    • Fuel capacity approx.: 1.8 liters (0.48 gal)
    • Weight (no fuel) approx.: 38.8 kg (85.55 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid
    Fuel System Dell'Orto PHBG 19 BS
    Ignition Seletra 2p D36
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 60/100 x 12 in.
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 87.74 lbs (39.8 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 40.63 in. (1032 mm)
    Ground Clearance Unloaded: 9.92 in. (252 mm)
    Seat Height Adjustable: 25.59 / 26.57 in. (650 / 675 mm)
    Transmission
    Transmission Single gear automatic
    Final Drive 10:44

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 50 SX
    Style Youth
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 60/100 x 12 in.
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 87.74 lbs (39.8 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 40.63 in. (1032 mm)
    Ground Clearance Unloaded: 9.92 in. (252 mm)
    Seat Height Adjustable: 25.59 / 26.57 in. (650 / 675 mm)
    Trail
    Rake
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid
    Compression Ratio
    Fuel System DellOrto PHBG 19 BS
    Ignition Seletra 2p D36
    General
    Colors
    Warranty
    Transmission
    Transmission Single gear automatic
    Final Drive 10:44
